Team Powers M-Radon 3BT (30A) ESC With Program Card
Team Powers M-Radon 3BT (30A) ESC With Program Card
Team Powers M-Radon 3BT (30A) ESC With Program Card

Team Powers M-Radon 3BT (30A) ESC With Program Card

Regular price $75.00 AUD $0.00 AUD Unit price per
Tax included.

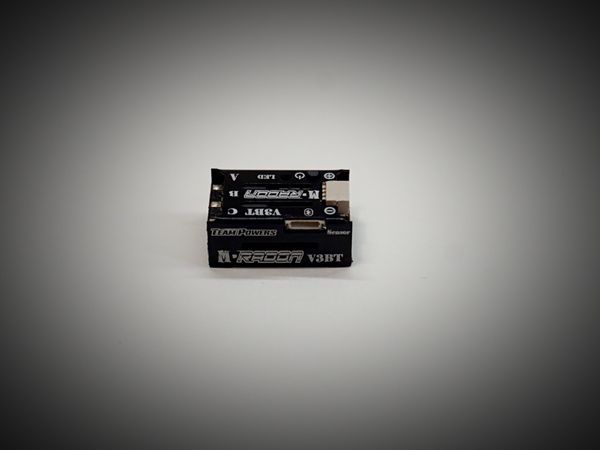

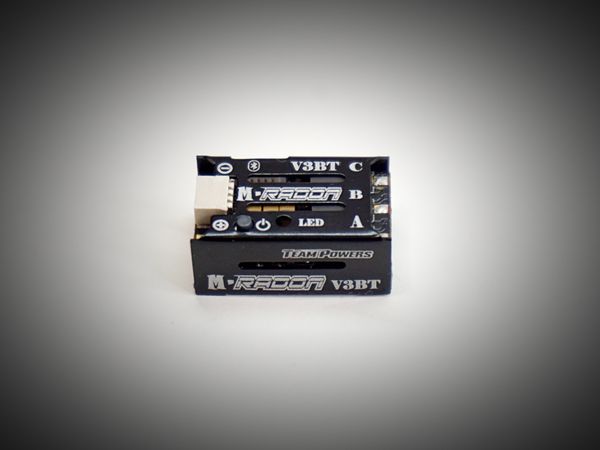

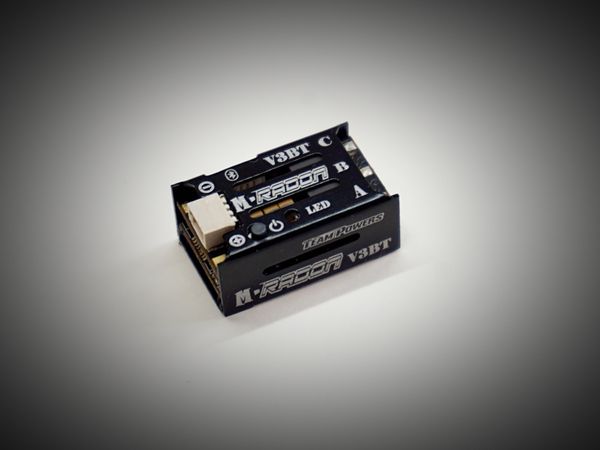

Team Powers Radon-M 30A Version 3BT ESC (TP-RADON-M-V3BT-30A):

Upgraded features from M-Radon V2.1:

  • Change to 32-bit MCU with ultra-smooth, faster response with precise throttle and braking control. More top end power with the same item function setup.
  • Support ~2.5A BEC ampere drawn which is raised up by ~60%.
  • Support ~30A instant ampere drawn by the motor which is raised up by ~50%.
  • All wire are exposed to open area for easy soldering.
  • Built-in Bluetooth device for advanced programming and firmware update through the Mobile APPS.
  • APPS will be available on both IOS and Android.
  • Real Time Data Analysis through Mobile APPS (Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing).


Software:

  • It is a new developed software with more advanced item functions added which is closed to the same as Radon Pro V5BT.
  • Each item have small step to fine tune.
  • All update item functions information can be reviewed from the photos attached.


Specification:

  • Battery Input Voltage: 2S lipo
  • BEC: 6V/2.5A
  • 1/27 motor Limit: 10000kv or below
  • Max Ampere draw: ~30A per phase
  • Size: ~22.5x13.5x9mm (not include the plug)
  • Weight: ~5g (without any wire installed)



Link to ESC and mobile phone app user manual:

https://drive.google.com/file/d/1X3nHJrWUUl_9s_mK7D2y2MKIE5FEkS6T/view
